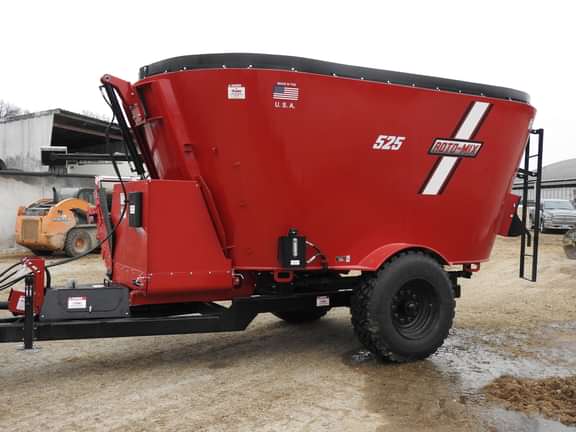

525 Vertical Feed Mixer Description

The 525 is a twin auger vertical feed mixer with a mixing capacity of 520 cu. ft and it can hold a maximum load with a heavy ration up to 13,000 lbs. The side discharge or front center flat sliding conveyor feed out of either side. Fixed or adjustable incline conveyors are optional. Twin matching single flighted augers with several knife options are available for faster mixing and processing of long fiber material. This unit is available in either truck, trailer or stationary. Its low profile allows several types of loaders to input feed without clearance concerns. The trailer model can be operated with a 100 horse power or larger tractor. Twin screws are powered by a reliable, low maintenance PTO-driven, planetary gearbox. This feed mixer is for medium-sized dairy, cow/calf, stocker and heifer operations.
- Specifications Table - Truck Trailer Stationary All Types
Length (cm) 192-488 259-658
Width (cm) 98-249 95-241
Height (cm) 104-262 107-269
Weight (kg) 10850-4761 11200-5079
Capacity-Mixing (m³) 520-14.72
Maximum Heavy Ration (kg) 13000-5897
