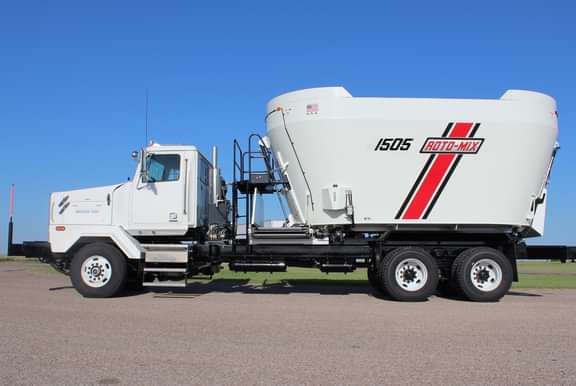

1505 Vertical Feed Mixer Description

The 1505 is a twin auger vertical feed mixer with a mixing capacity of 1300 cu. ft. and it can hold a maximum load with a heavy ration up to 32,500 lbs. The 1505 is available in either the A-Series that includes variable speed auto-mix drives with proven Allison transmission performance or the H-Series that is equipped with variable speed hydrostatic drives and load-controlled auger speeds. This vertical mixer provides a premium mix quality in efficient mix time and offers a superior hay length control. There are multiple unloading door options from side to rear. Available in truck, trailer or stationary, this unit is built for commercial use in larger dairy and feedlot operations.
- Specifications Table - Truck Trailer Stationary All Types
Length (cm) 245-622 334-848 245-622
Width (cm) 116-295 100-254 116-295
Height (cm) 152-359 145-366 137-346
Weight (kg) 18648 to 19250-8460 to 8732 20600-9342 23500-10658
Capacity-Mixing (m³) 1300-36.81
Maximum Heavy Ration (kg) 32500-14741
